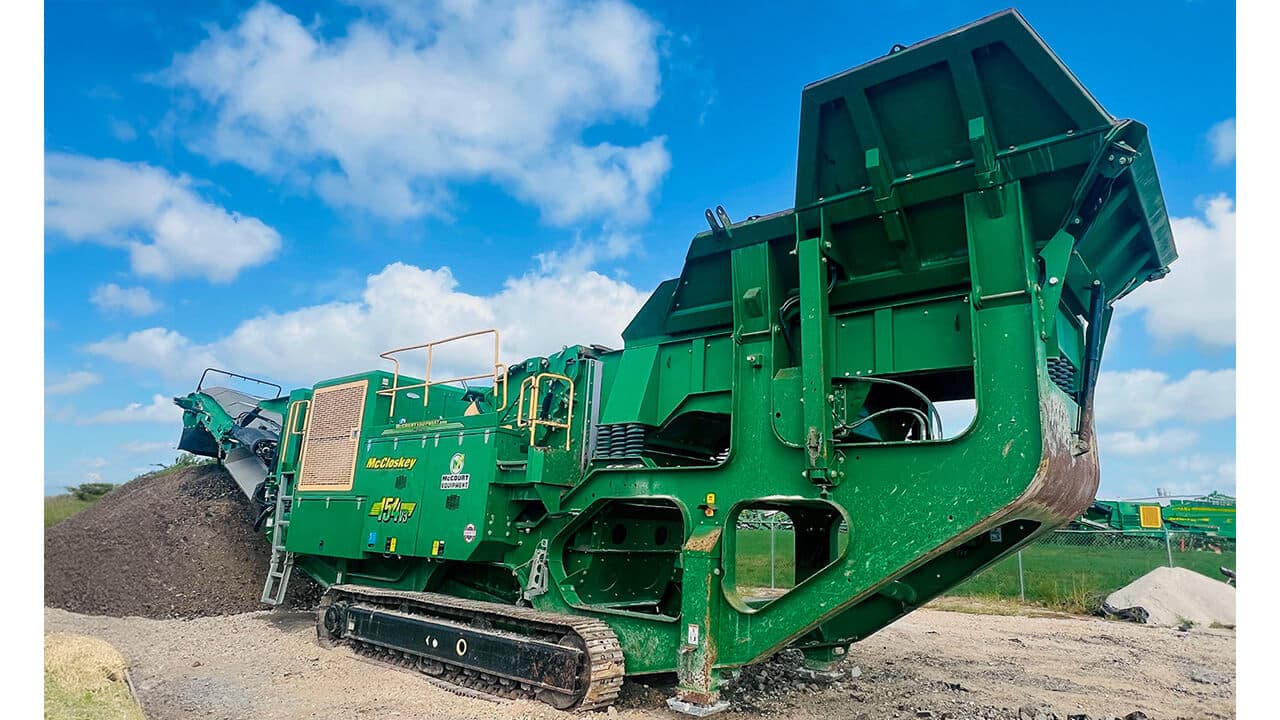

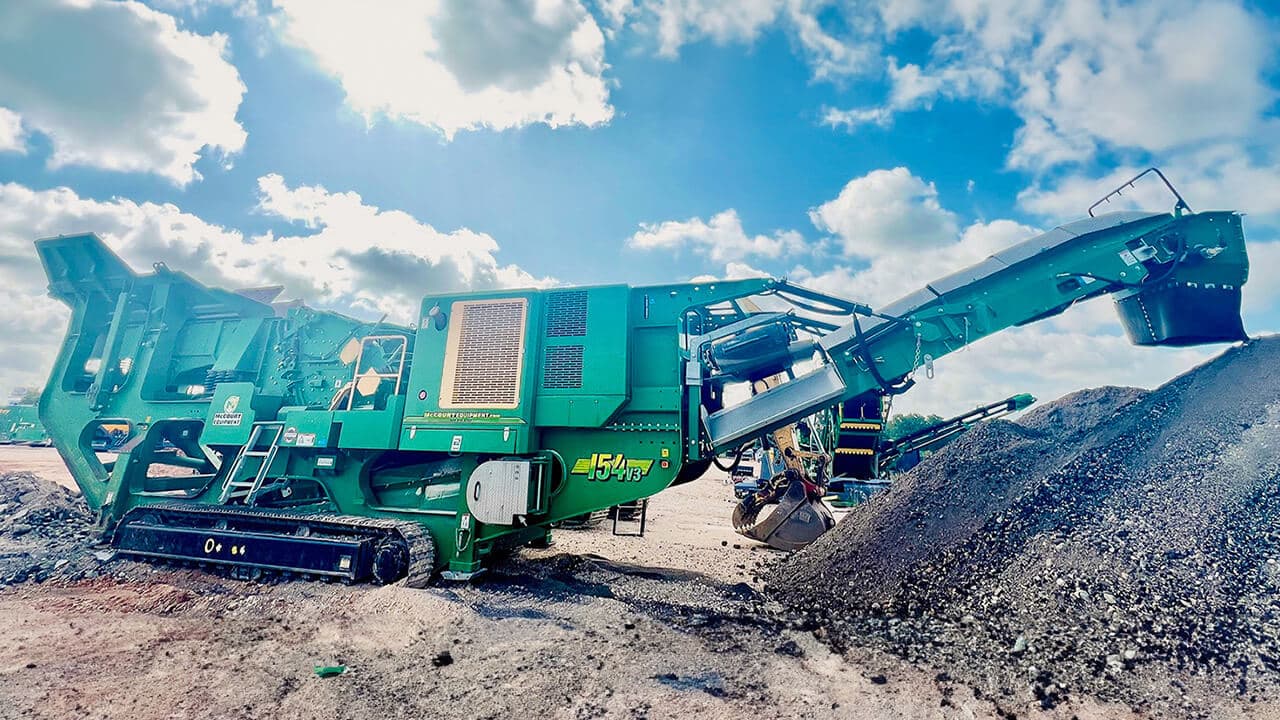

The I54V3 Impact Crusher has a large output capacity for mobile impactor applications. Its primary part is a four-bar impactor with a feed hole measuring 48 x 53 x 37 inches. Before the crushing chamber, the I54V3 has a double-deck grizzly pre-screen that vibrates independently and filters out the majority of particles. These qualities make it possible to increase capacity and decrease wear. The I54v3 maximizes production time because it is versatile and portable, and setup time is minimal.


  • User-friendly control panel
  • 55″ main conveyor
  • 48″x 53″ four-bar impactor with a 46″ x 106″ pan feeder
  • The load-sensing impactor can manually or automatically regulate the feeder rate
  • Crusher pre-screen for maximum efficiency
  • Folding Hopper

Technical Specs

  • Engine:
    510 HP Diesel
  • Impactor:
    48" x 53"
  • Feed Opening:
    53.5"x 37"
  • Crusher Speed:
    34 - 44 m/sec. rotor speed
  • Prescreen Dimensions:
    47.4" x 7'-8.8"
  • Hopper Volume:
  • Stockpile Height Main Conveyor:
