Lippmann 6’ x 24’ Triple Deck Dual Power Track Screener

The Largest Mobile Screen on the Market

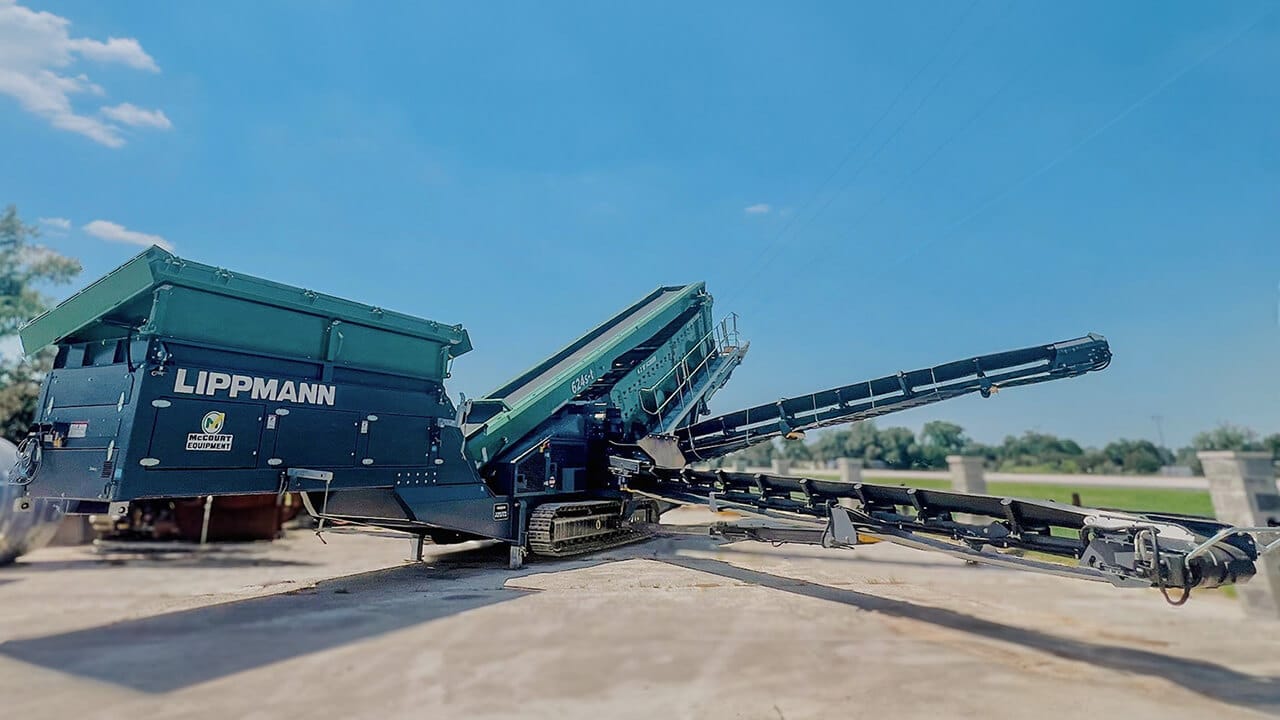

Elevate your screening efficiency with Lippmann’s newest innovation. The 6’ x 24’ Triple Deck Dual Power Track Screener boasts the highest discharge heights in its class, ensuring unparalleled performance in a variety of applications. Designed for operators who demand more from their screening equipment, this screener is engineered to deliver top-tier productivity and adaptability on any job site.

Legendary Screening Power

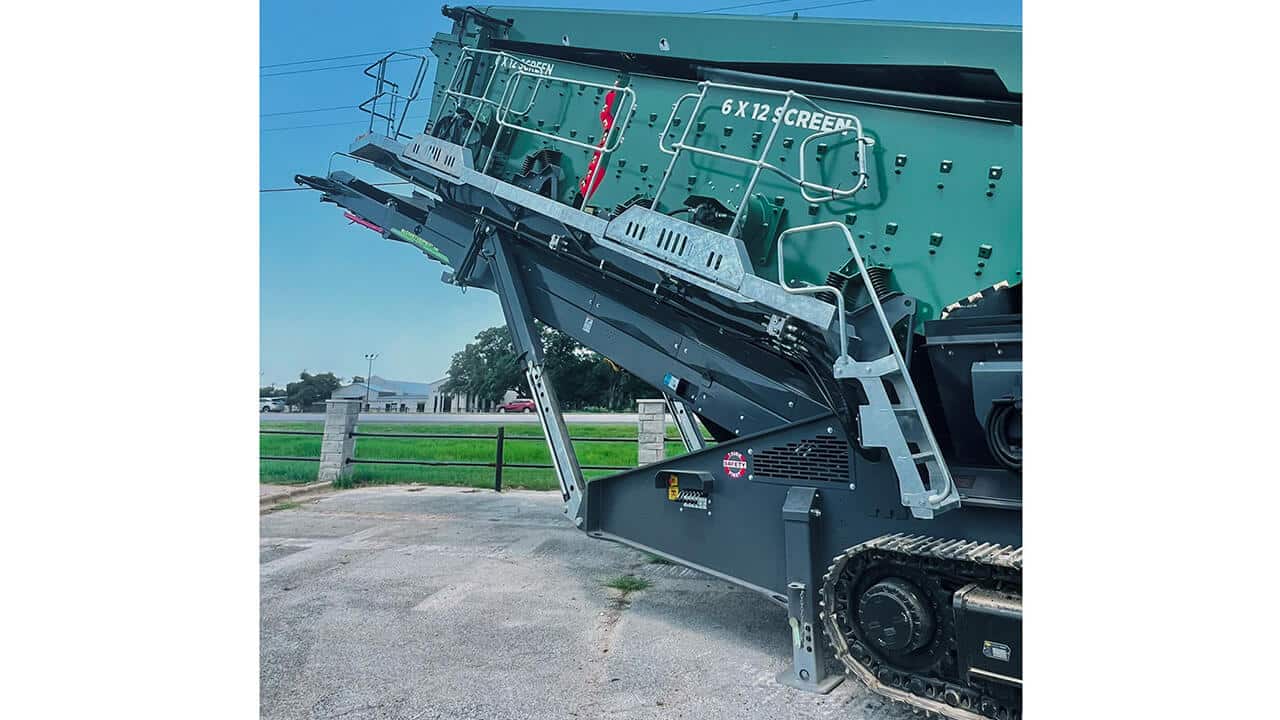

Experience the next level of screening with high-energy dual slope screen boxes. Each 6’ x 12’ screen box is individually adjustable, allowing you to customize stroke, speed, and direction to suit your specific needs. The steeper angle of the first screen box accelerates material flow, optimizing throughput and efficiency.

Standard Features:

  • Double 12′ x 6′ High-Energy Screen Boxes
  • Powerful Engines

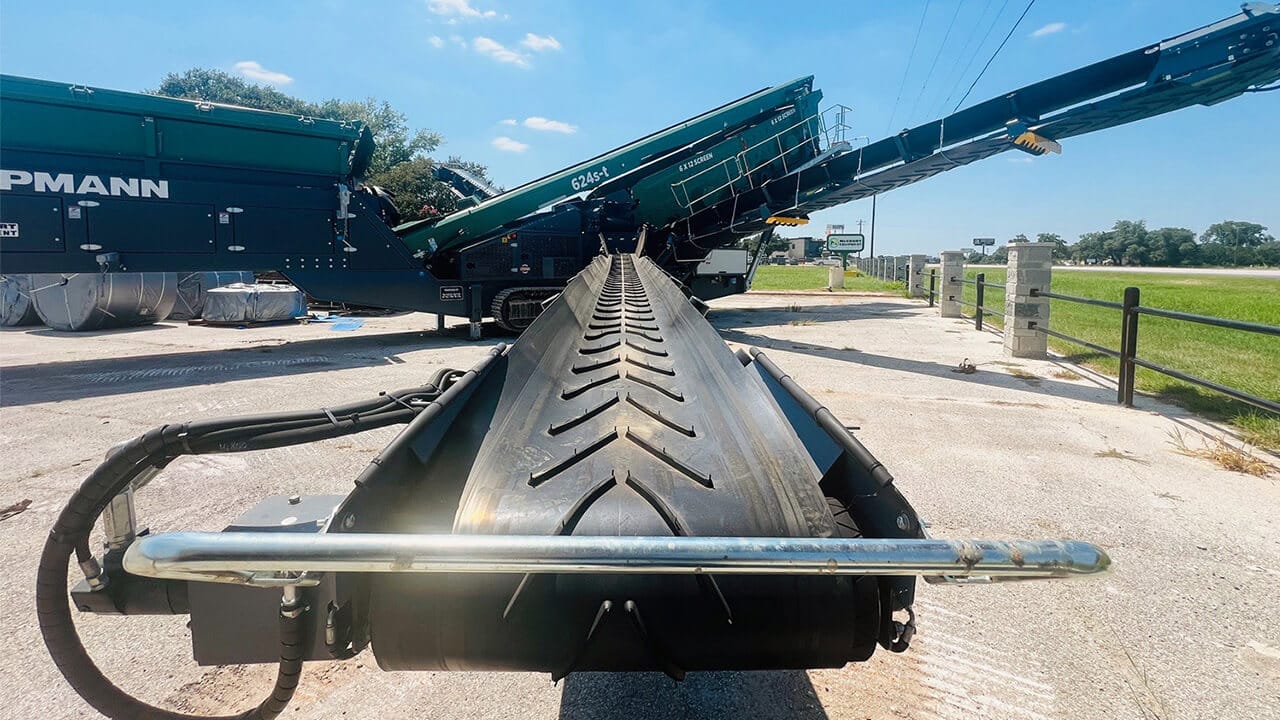

  • Integrated Hydraulic Folding Stockpiling Conveyors
  • Remote Control Tipping Grid
  • Rapid Setup

Ready to optimize your screening operations? Contact us for pricing and more information!

Technical Specs:

  • Side Conveyor Stockpile Height:
    17’
  • Tail Conveyor Stockpile Height:
    16'
  • Max Conveyor Speeds:
    108 - 135 rpm
  • Top Deck Dimensions:
    12' x 6'
  • Middle Deck Dimensions:
    12' x 6'
  • Bottom Deck Dimensions:
    11' x 6'
  • Screen Angle:
    18 to 25 degrees
  • Screen Shaft Speed:
    970 +/- 10 rpm

Let's Get Started

Contact Us for More Info

Let us know how we can help you in the contact form or give us a call at (888) 838-9252
