Product Details

The Doppstadt grinding line allows for grinding of waste wood, wooden pallets, green waste, organic waste, trunk, and root wood. These grinders come equipped with different flail tips that can be changed depending on the material process.

Features

  • Rear strap length 6m
  • Ideal for smaller systems
  • Separate drive from scraper floor and feed roller for optimal material feed and high throughput

Technical Specs AK315

  • Chassis:
    2-axle trailer
  • Total Weight:
    16000kg
  • Length:
    12890mm
  • Width:
    2130mm
  • Height:
    3550mm
  • Transport Width:
    2130mm
  • Transport Height:
    3080mm
  • Transport Length:
    9240mm
  • DRIVE:
  • Engine:
    Diesel
  • Make:
    MTU 6R 1000
  • Emissions Standard:
    Stage V
  • Nominal Output:
    (kW / PS) 230/310
  • Tank Filling:
    (l) 300
  • Torque (Nm):
    1300 Nm at 1200-1600RPM
  • Make:
    MTU 6R 1000
  • Emission Standard:
    Euro mot III A
  • Nominal output:
    (kW / PS) 230/310
  • Torque (Nm):
    1250 Nm at 1200-1600RPM

Please Contact McCourt Equipment for Specifications on these Additional Doppstadt Grinder models:

  • AK315 High Speed Grinder
  • AK565 High Speed Grinder
  • AK565K
  • AK565K Plus

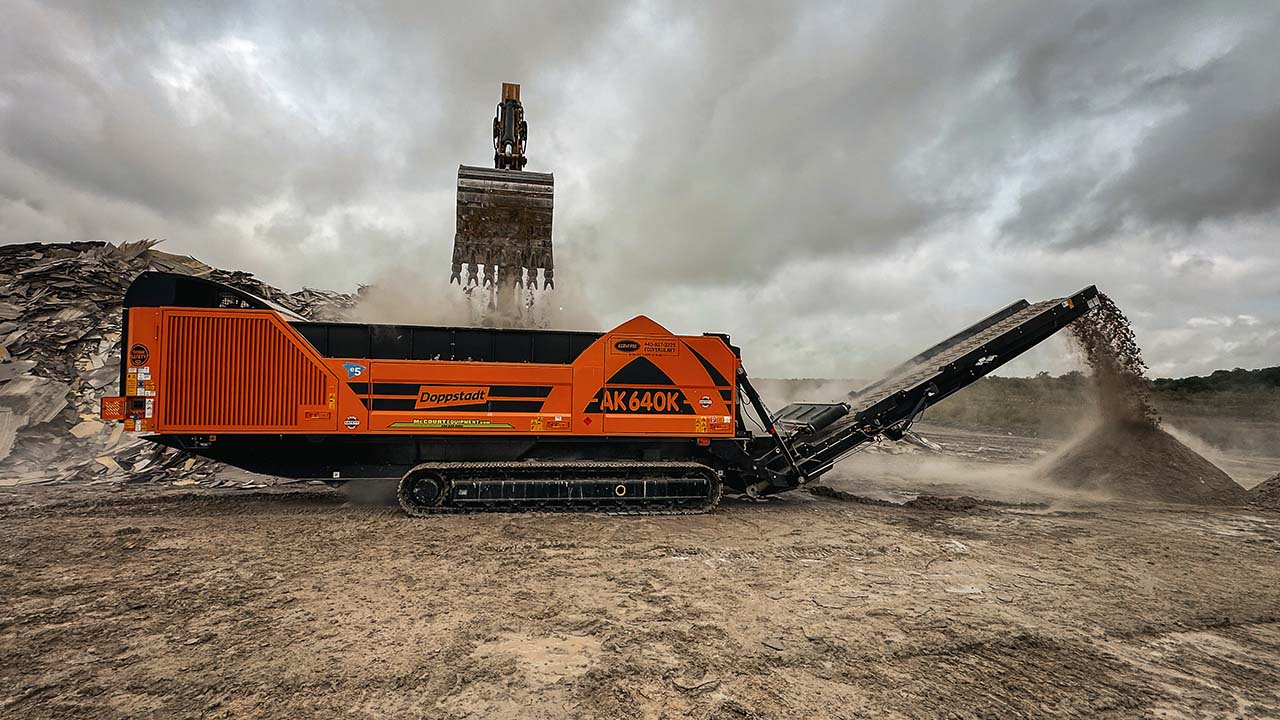

  • AK640SA
  • AK640K
