Heavy-Duty Impact Crusher with Recirculating System

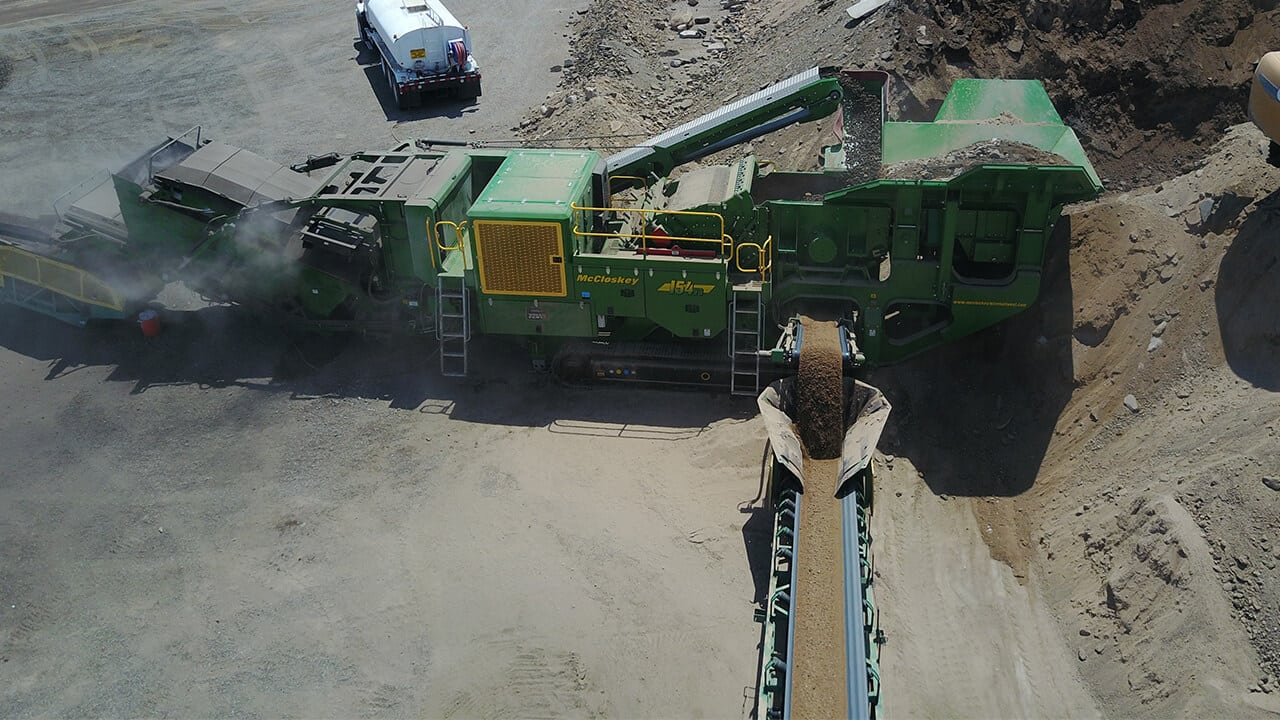

McCloskey I54RV3 Impact Crusher

Product Details

The recirculating system and full screening capabilities allow operators to produce a high quality crushed and screened final products with one machine the I54Rv3. It offers a full screening and recirculating system and the option to discharge to a vibratory under pan or direct to the main conveyor.

Built for durability, power, and ease of use, the I54RV3 is ideal for asphalt recycling, concrete recycling, rock crushing, and construction demolition. Its fast setup time, user-friendly controls, and high-capacity stockpiling conveyors maximize on-site production and efficiency.

Features

  • User-friendly control panel
  • 55″ main conveyor
  • 48″ X 53″ four-bar impactor with a 46″  X 106″ pan feeder
  • The load sensing jaw can manually or automatically regulate feeder rate
  • Crusher pre-screen for maximum efficiency
  • Folding Hopper
Used Units Available:

Technical Specs

  • Engine:
    510 HP
  • Impactor:
    47.2" x 52.6"
  • Feed Opening:
    48"x 37"
  • Crusher Speed:
    33-40 m/sec. rotor speed
  • Pre-Screen Dimensions:
    47.4" x 7'-8.8"
  • Hopper Volume:
    8.9yd³
  • Stockpile Height Main Conveyor:
    12'-3"
